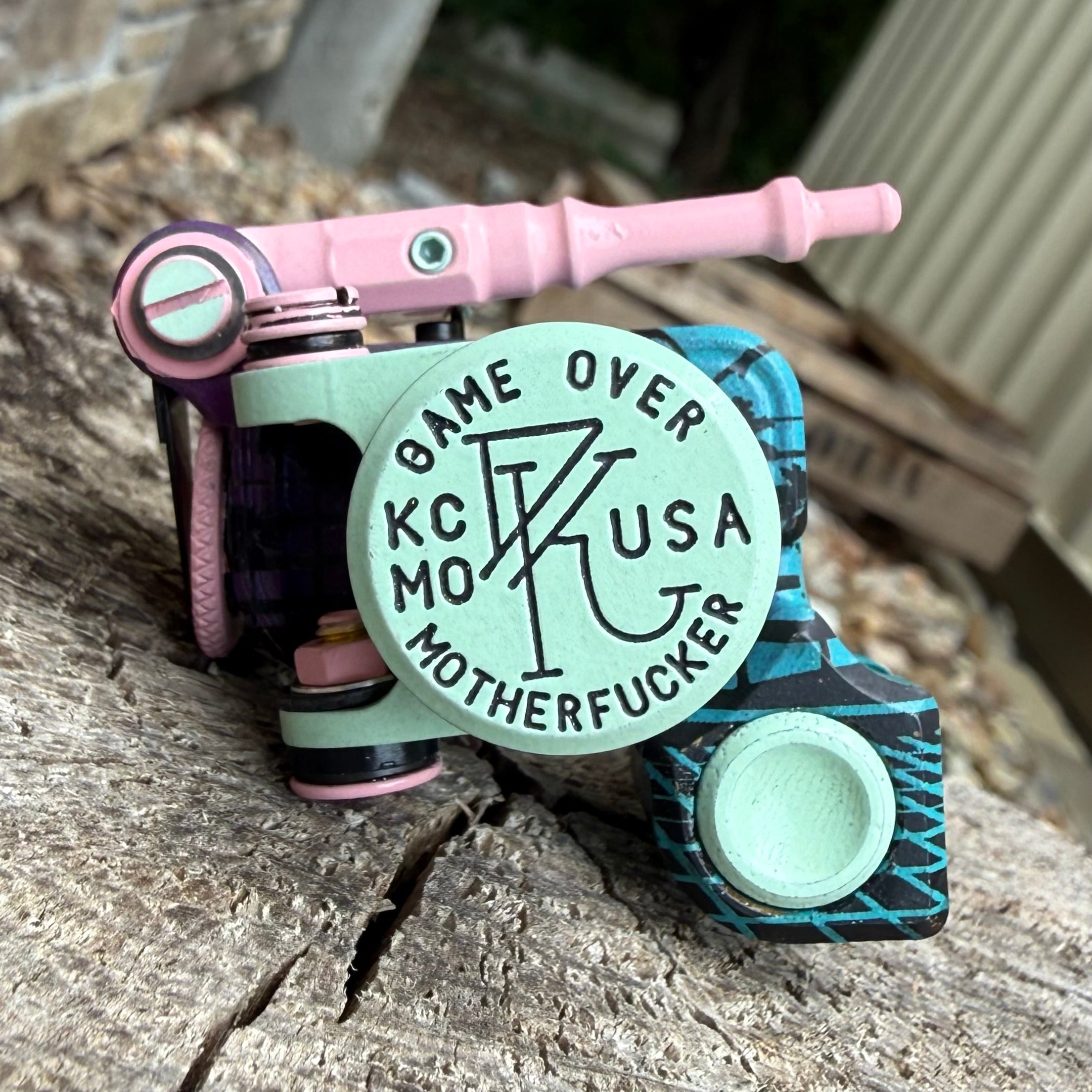

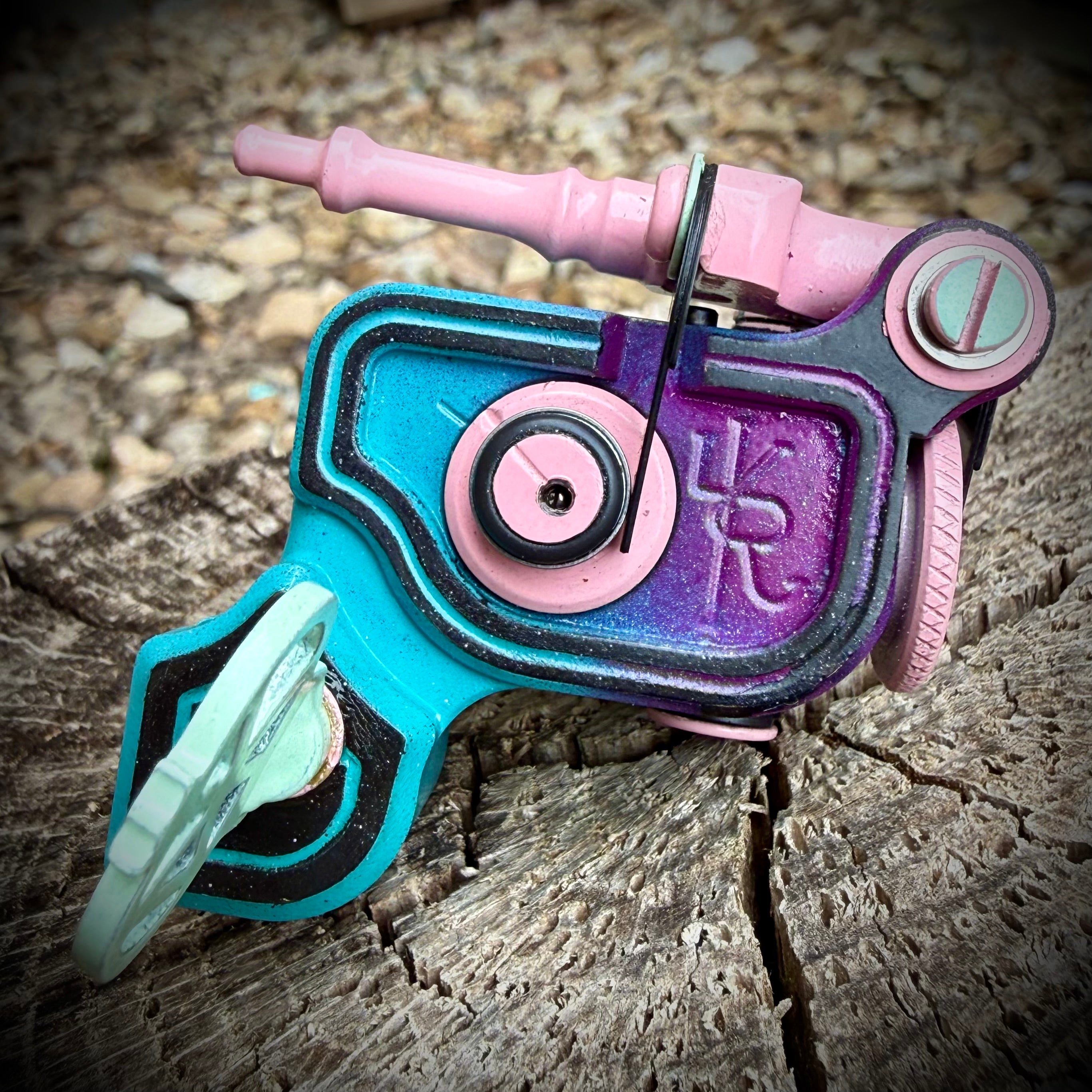

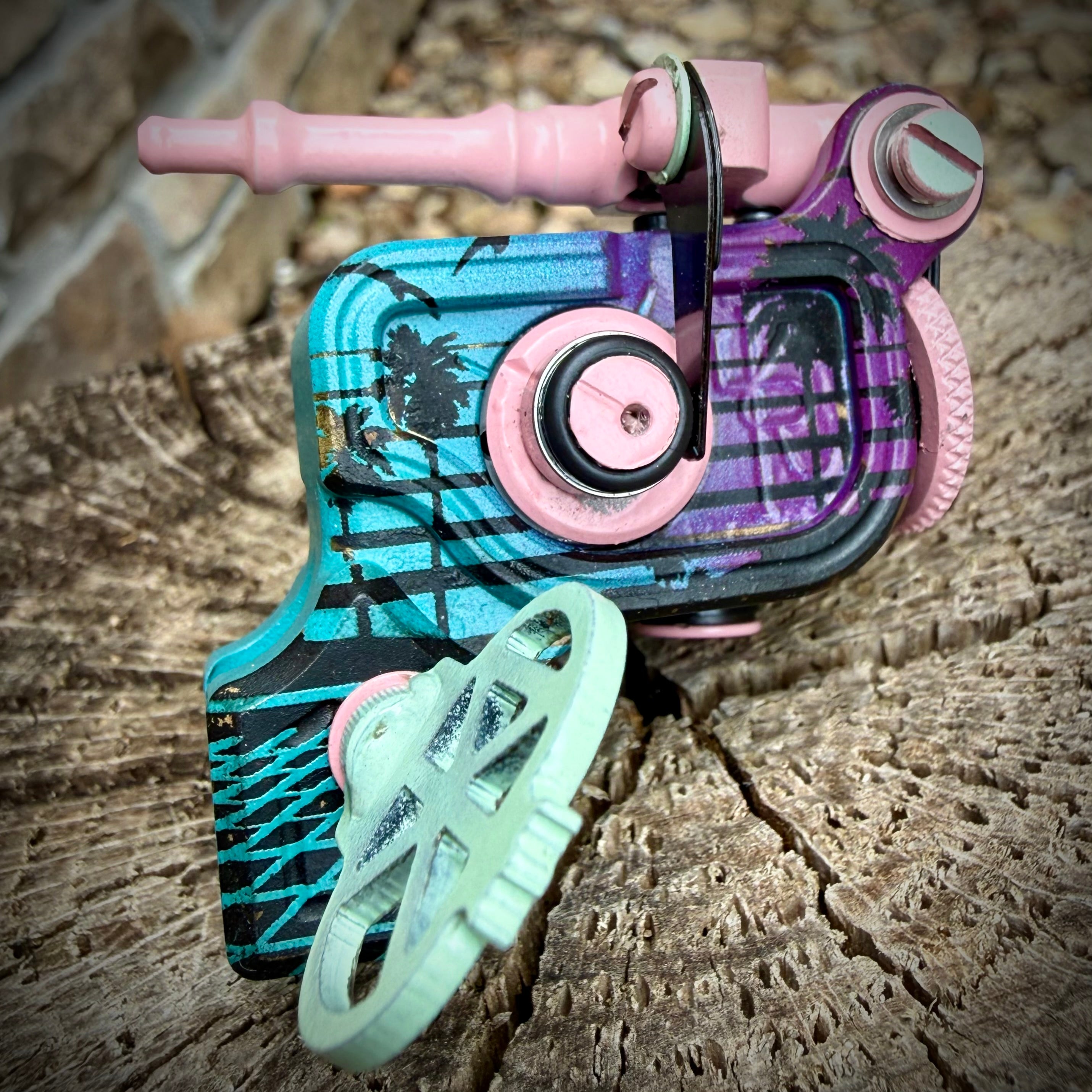

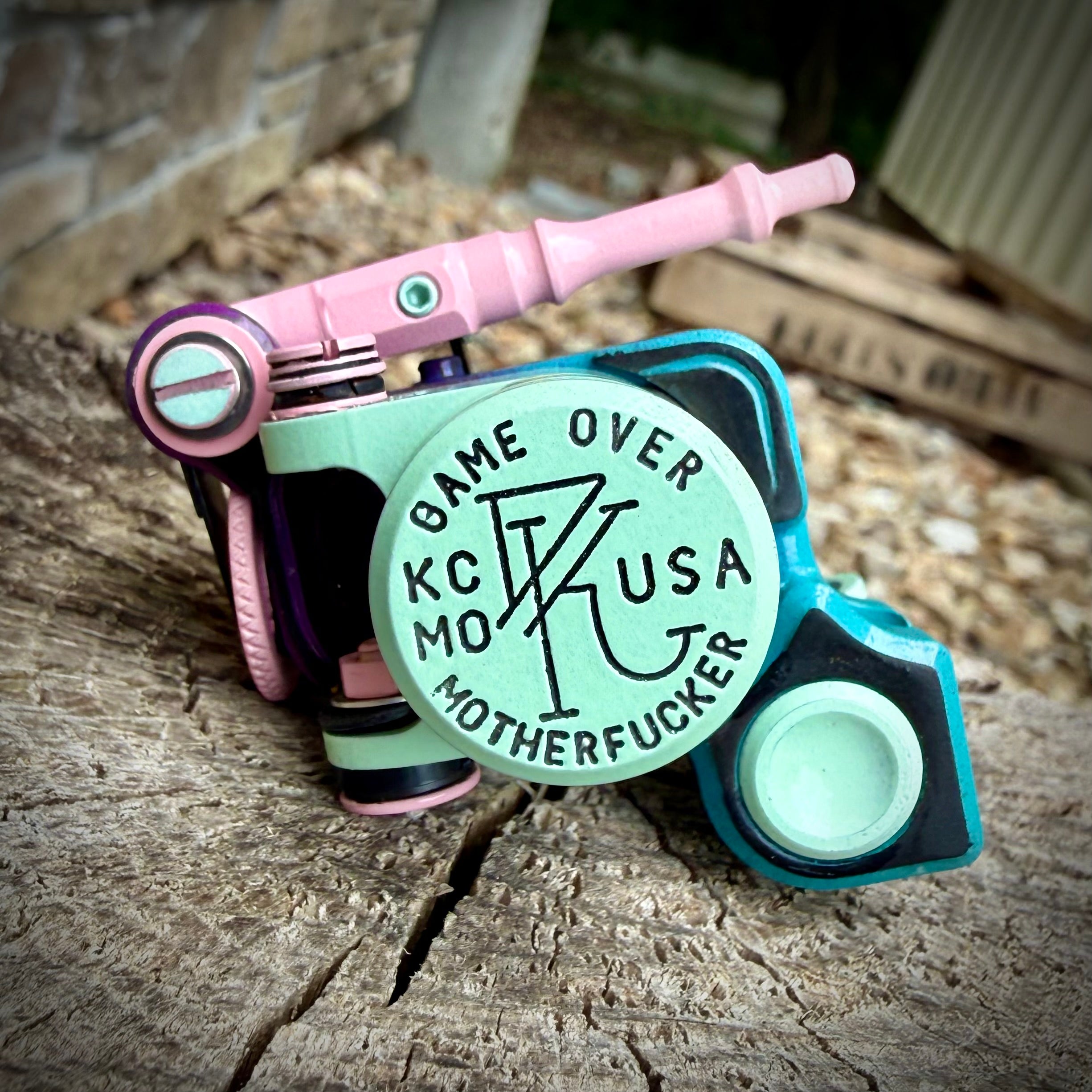

Sidewinder 46er | 2-Toned Vapor Waves

$975.00

These new machines represent the beginning of an exciting evolution in our finishing process, with each batch helping refine and elevate the next.

Because each unit is finished by hand, you may notice minor cosmetic characteristics such as light surface marring, subtle discoloration, or small handling marks. These are aesthetic only and are a natural result of our handcrafted production process. They do not affect the performance, precision, durability, or reliability of your machine.

We view these early machines as the foundation of what is to come. While our finishing methods will continue to improve over time, every machine is built to the same uncompromising functional standards and is fully intended to perform as designed.

As these cosmetic variations are an expected characteristic of our small-batch, handcrafted process, they are not considered defects and are not eligible for return or exchange.

Thank you for supporting American craftsmanship and being part of the next chapter of DK Rotary. Your support allows us to continue refining our finishing processes producing new and exciting finishes with every batch!



The Dan Kubin Sidewinder 46er is a versatile rotary tattoo machine designed for experts. With a wide stroke range and precise cam timing, it can be used for lining, shading, and single needle work. Available in aluminum, it is compatible with most battery packs and delivers consistent hits with customizable tuning features.

See All Specs
Quantity

Key Features

  • Wide stroke range: ~2mm–4mm (true Sidewinder-style response)
  • Large hardened steel stroke wheel with preset stroke range & timing marks
  • Rear-positioned hardened alloy steel impact pin for improved sound and performance
  • Forward weight distribution for better balance and control
  • Precise cam timing for advanced stroke and impact alignment
  • Smooth clamping tube vice
  • Mabuchi motor for long-term consistency and reliability
  • Built-in O-ring groove for quieter operation (with optional performance tradeoff)

Technical Specifications

  • Recommended voltage: 4.0v – 6.5v

  • Weight (Without Battery):

    Brass: 6.04 oz

    Featherweight Aluminum: 4.4 oz



    Weight with battery (Approx.):

    Featherweight + Critical Shorty: 5.77 oz

    Brass + Critical Shorty: 7.4 oz

    Featherweight + Standard Critical Battery: 6.37 oz

    Brass + Standard Critical Battery: 8 oz

  • Polarity:

    Positive up (clockwise motor spin): Sharper, harder hit – ideal for bold lining

    Positive down (counterclockwise): Softer hit – ideal for shading and fine line work

  • Built and verified by Dan Kubin for authentic performance

RCA Battery Compatibility

Designed around the Critical Universal Battery Pack

Also compatible with MusotokuInk ClawPapa, and most right-angle RCA cords

Balances like a pen with forward-weighted battery position

Runtime example: ~3 hours on Critical Shorty Battery

Authenticity Guaranteed

This is a brand new, certified Dan Kubin Sidewinder 46er. It is not refurbished or modified. Every machine is crafted using official components and tested for optimal function before release.

Important!

Due to rising counterfeits, always purchase directly from DanKubin.com or verified resellers. This listing guarantees a genuine Sidewinder 46er.
