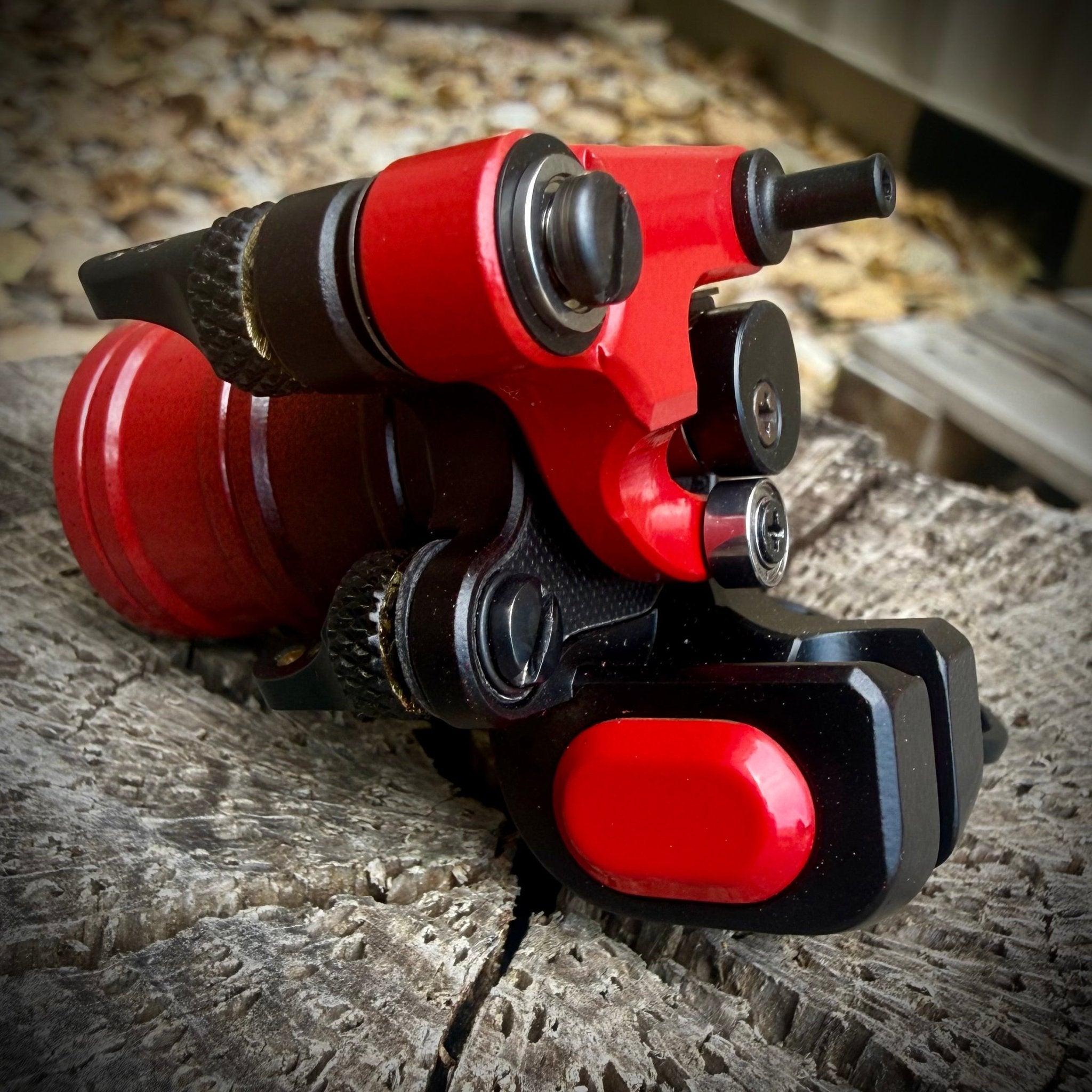

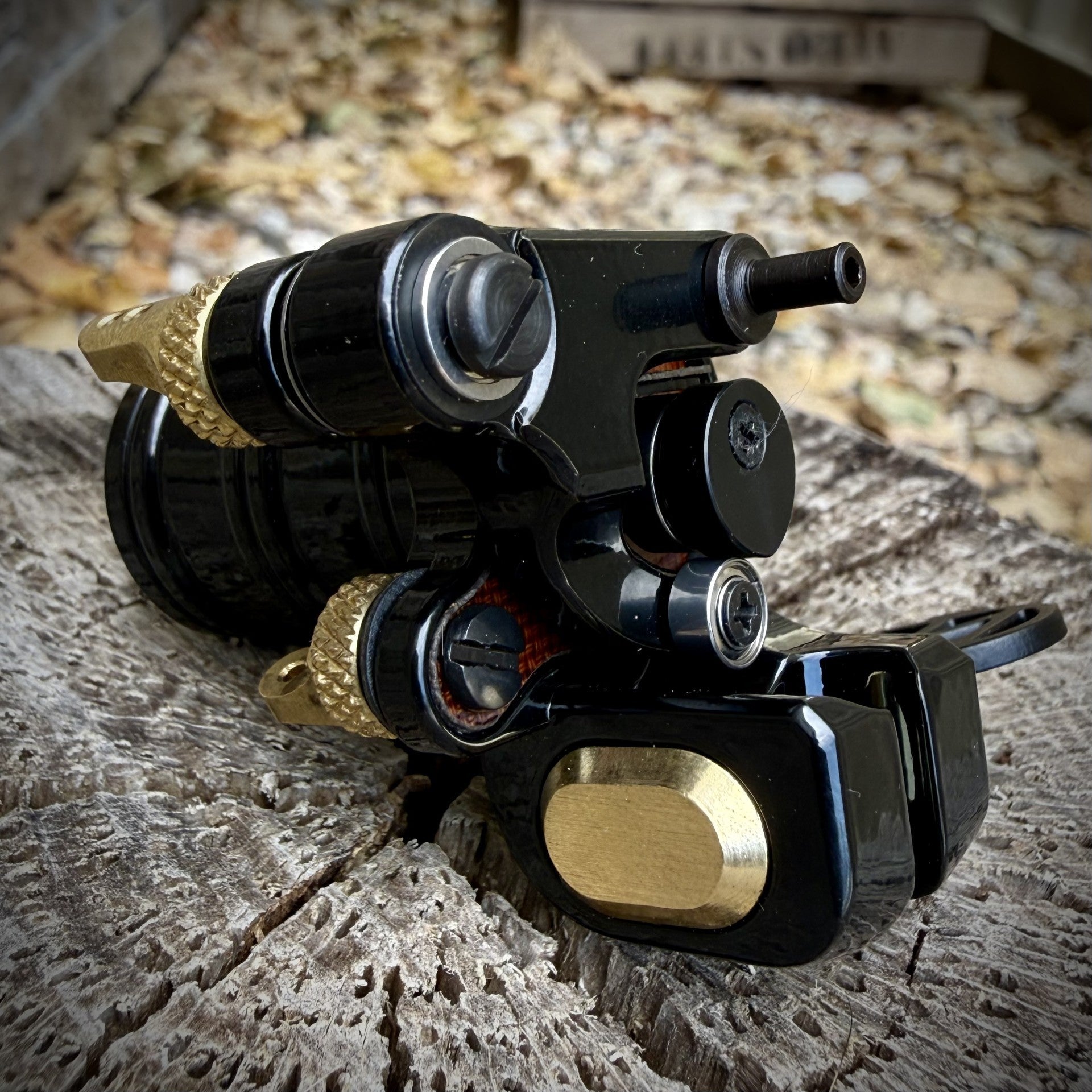

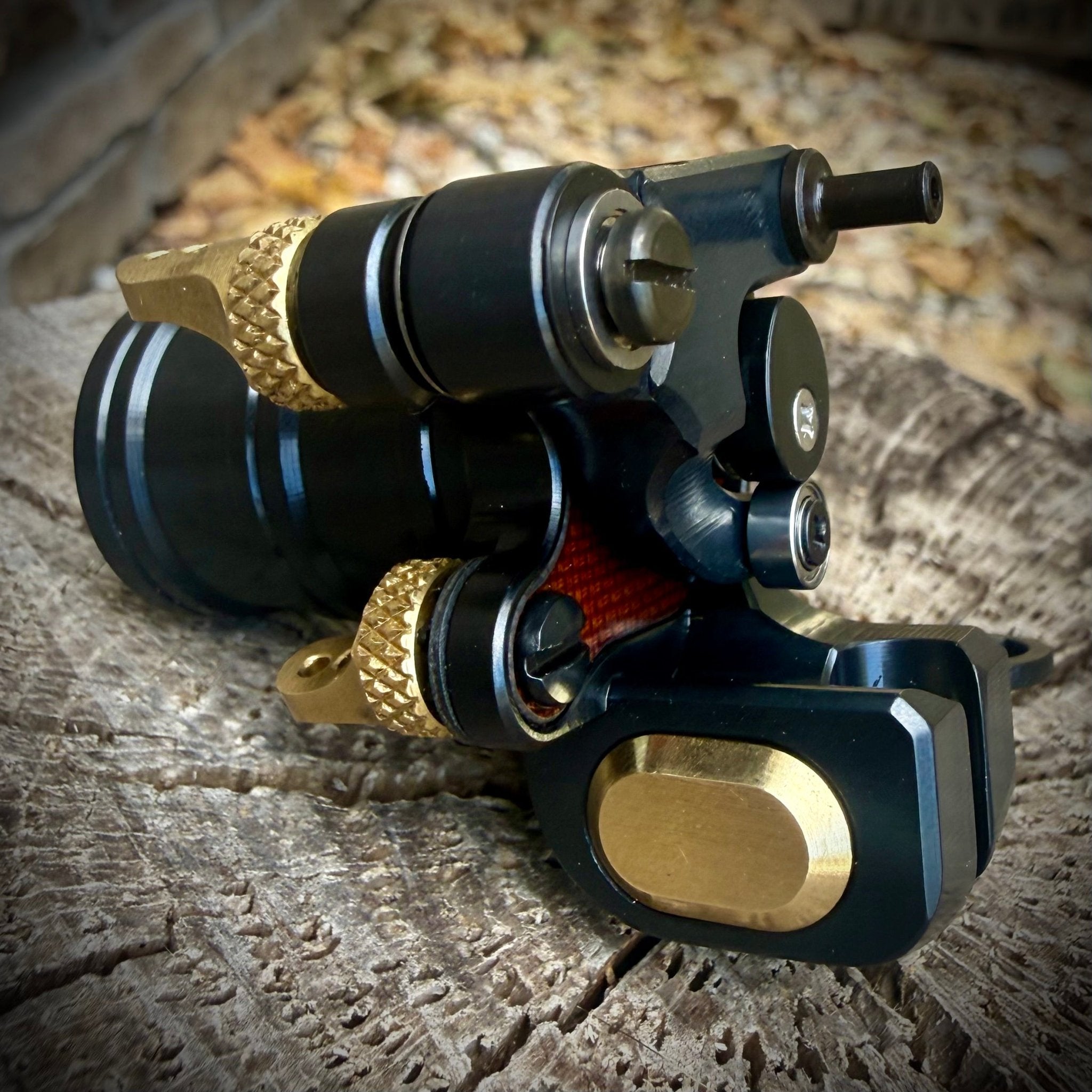

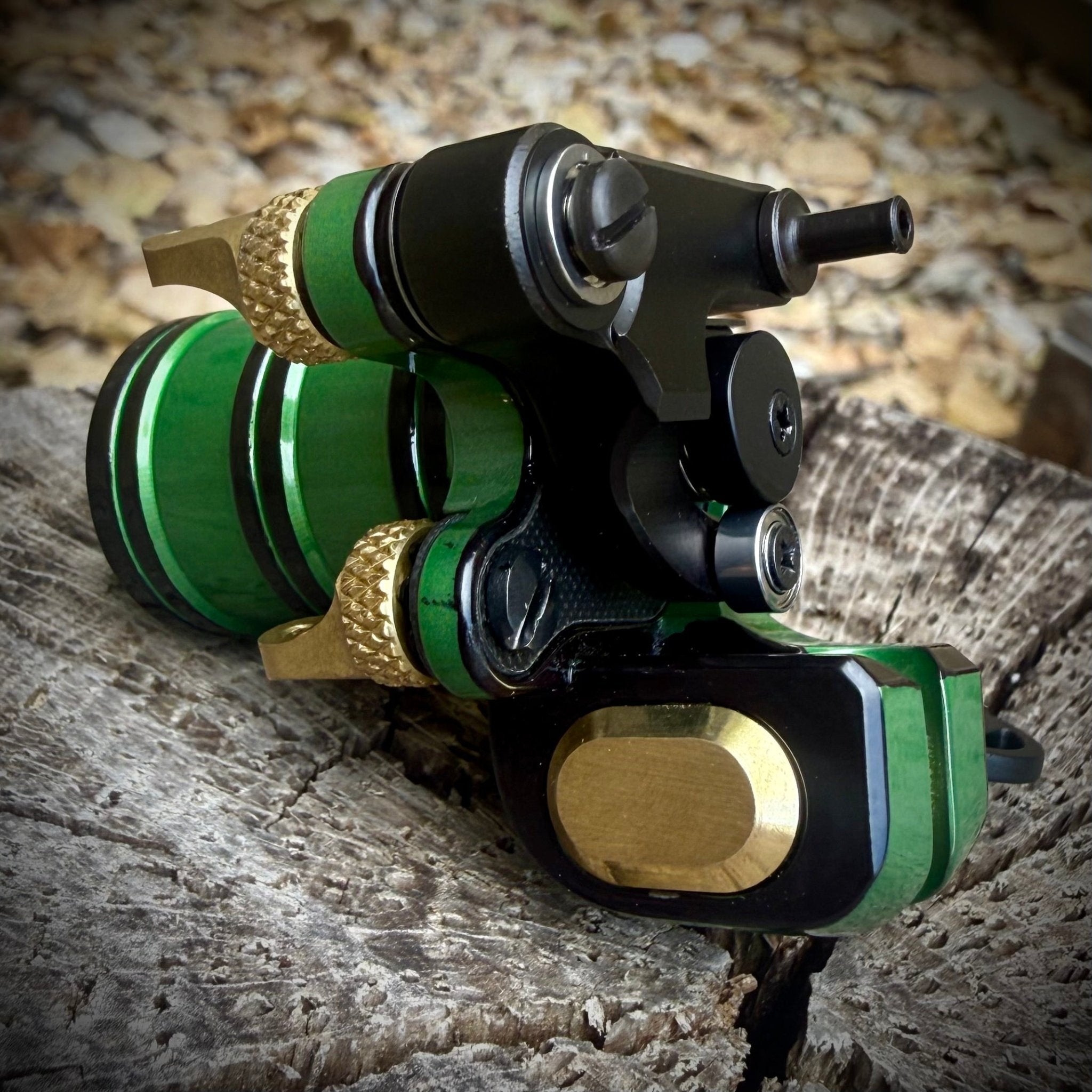

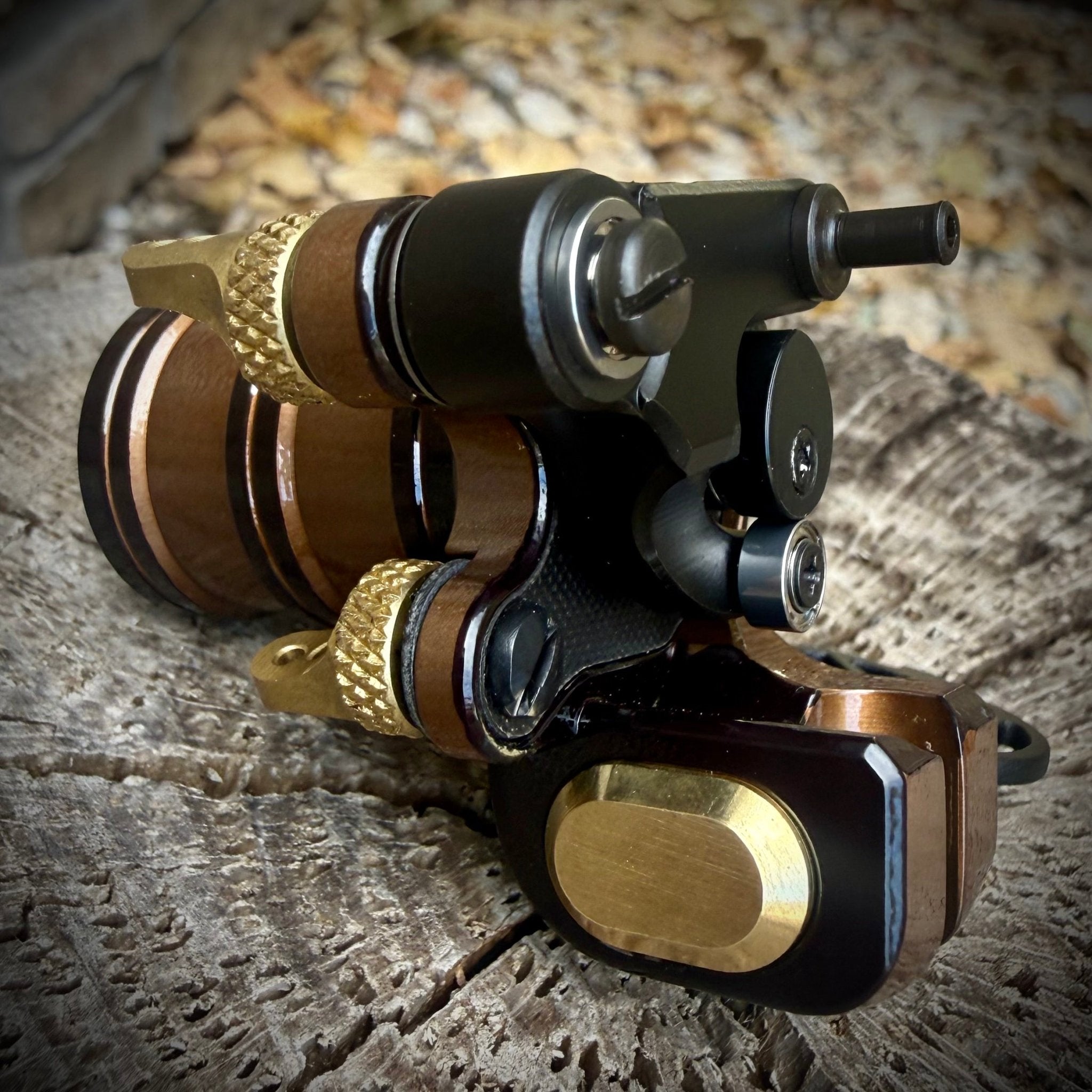

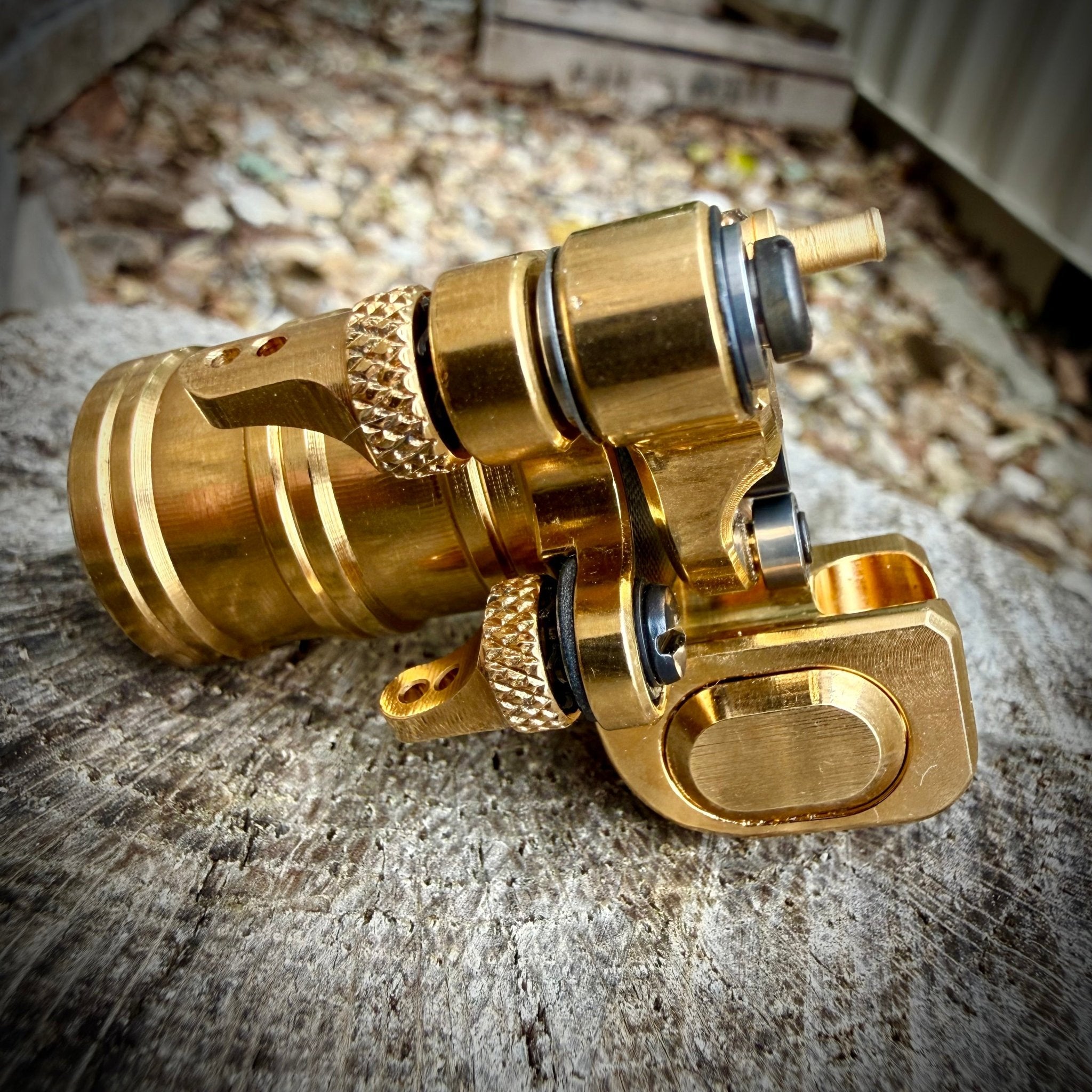

Swingliner V3

Due to popular demand, I have remastered the legendary Swingliner.

Specs

Steel construction.

Weight: 4.85 oz/138g

Stroke: 4.25mm

Plunger bar length: 76-85mm.  (available on the website)

Ideal voltage range: 3.8-6.5V

Two different hit characteristics built into the cam design.

Positive up: sharper/harder hit

Positive down: blunt/softer hit

Not tuning, No rubber bands

Cartridge only

FAQ's

What is the voltage range on this?

3-6.5 Volts

What is the safe amperage range?

It is best if the amperage is below .4 amps.  This machine will typically pull .2-.35 amps depending on voltage and cartridge tension.

Is there any tuning involved?

No. This is a clever plug and play machine with two different hits built into the design.

Simply reversing the polarity by how you attach your clip cord will change the hit from hard to soft.

Positive up will hit harder/sharper

Positive down will hit softer/more blunt.

How can I verify that my cord is marked correctly?

Put your finger on the cam while it's running. You will feel the direction it's turning.

If your cord is marked properly, Positive up (red) will spin clockwise. (counterclockwise with positive down)

What options are there for being wireless?

I recommend a battery grip.  I know Inkclaw Official has a battery grip with a clip cord adapter.

Can this machine use standard needles?

No. I wanted this machine to sit low in hand, and keep things simple.

How do I put a rubber band on this?

You don't.  I designed the nipple post to keep the plunger bar secured without needing a rubber band.

My machine is cutting out.  What could be the issue?

In most cases, it is a faulty clip cord.  If not that, it could be a loose binding post, or the set screw that holds the motor in place (on the top front of the frame by the swing arm).  If that set screw is loose, or the binding posts are loose, the machine will have interrupted electrical connection.

My machine is fluctuating in speed.  What could be the issue?

If the electrical connection is solid, it could be a dry or damaged bearing.

Most likely the roller bearing on the swingarm that the cam rotates on.

a single drop of sewing machine oil may fix the issue.  This can also be sourced on the website.
5 products

Flat Mint Swingliner V3

Flat Mint Swingliner V3

$775.00
$750.00
Ink Black Swingliner V3

Ink Black Swingliner V3

$775.00
Pretty Pink Swingliner V3

Pretty Pink Swingliner V3

$775.00
Tempest Cream Swingliner V3

Tempest Cream Swingliner V3

$775.00
Torched Steel Swingliner V3

Torched Steel Swingliner V3

$775.00
$750.00

Find Swift Tips Here!

Product not found
Swift Tips Starter Pack - Dan Kubin Rotary - SWT - STA - PAC

Please Click Here to Select your Swift Tip Options!

Swift Tips Starter Pack

$150.00

Swift Tip Complete Kit – Grip + 4 Tip Boxes + 100-pack Barrier Bags

Get everything you’re supposed to get—all in one bundle. The Swift Tip Complete Kit includes everything you need to run Swift tip efficiently, while saving money in the process.

What’s Included:

(1) Swift tip Grip – ergonomic and reusable

(4) Boxes of Swift tip Disposable Tips – choose your preferred sizes

(1) 100-pack of Grip Barrier Bags – for clean, hygienic setups

This bundle saves you $18.50 compared to buying everything individually. Built for professional tattooers who want a clean, organized, and fully dialed-in setup.

Compatible with Dan Kubin rotary machines and other traditional grip/tube setups.
Quantity
Product not found
Sidewinder – Grip Barrier Bag – 10 Pack - Dan Kubin Rotary - SW - GR - BAG - 10

Swift Tip | Grip Barrier Bag – 10 Pack

$40.00

  • Designed for the 1" Swift Tip Grip

  • Adds an extra layer of safety

  • Disposable and easy to use

Protect your setup and reduce cross-contamination with these disposable Swift Tip Grip Barrier Bags—specifically designed to fit the 1" Swift Tip grip.

Simply slide the bag over the grip and snap the tip in over the top to create a secure protective layer. While this barrier helps maintain hygiene, it's still recommended to wipe down your grip with a sterilant just as you would with your workstation or armrest.
Quantity
